TURBO OPTIMA MID SPECIAL



This is the built of a NIB Turbo Optima Mid Special made by « Phoenix » from Germany, this build was posted on the RC10Talk.com Forum.

Stacks Image 350

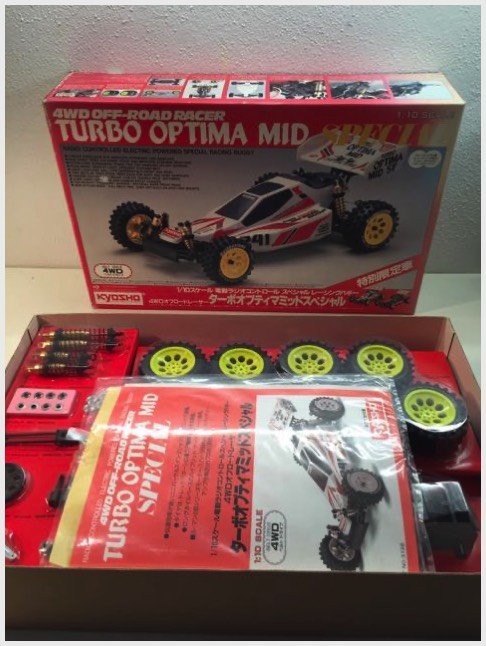

The box!

Stacks Image 348

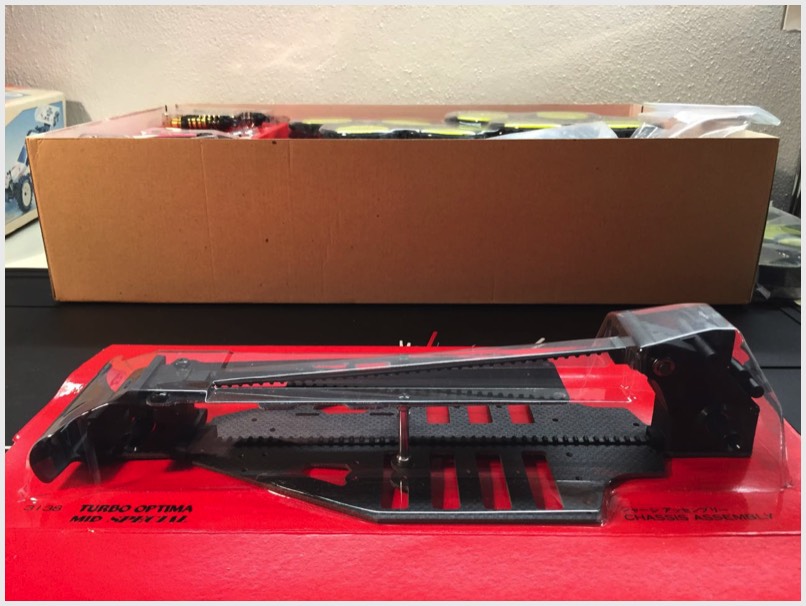

The drivetrain was already prebuilt by Kyosho.

Stacks Image 366


Body Painted

Stacks Image 1255


Wing & under tray done

Stacks Image 1279


Please excuse the Schumacher pit mat
icon_smile

Stacks Image 380


Rear Motor Plate and Stiffener attached

Stacks Image 1271

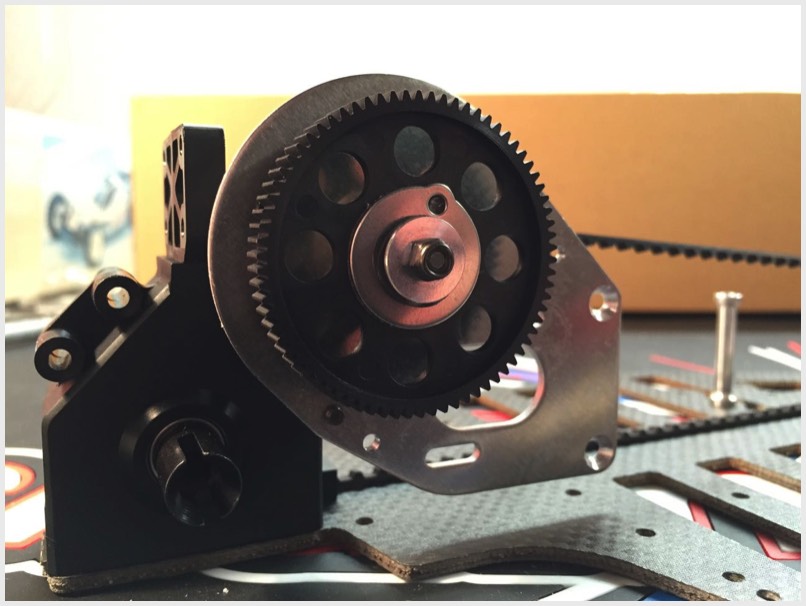

Main Gear Assembly

Stacks Image 382

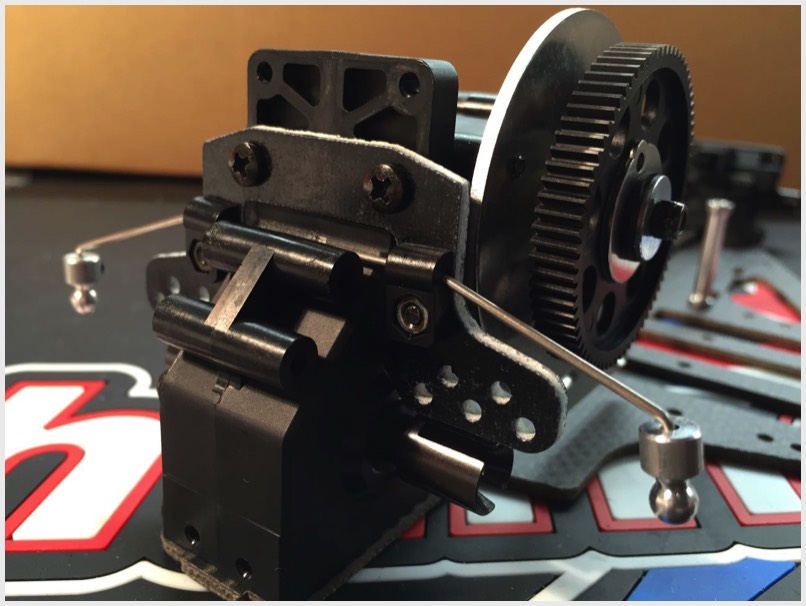

Rear camber plate and stabilizer

Stacks Image 424


Front shock tower and stabilizer

Stacks Image 434


Rear shock tower

Stacks Image 446


Rear view... can't get enough !

Stacks Image 1351

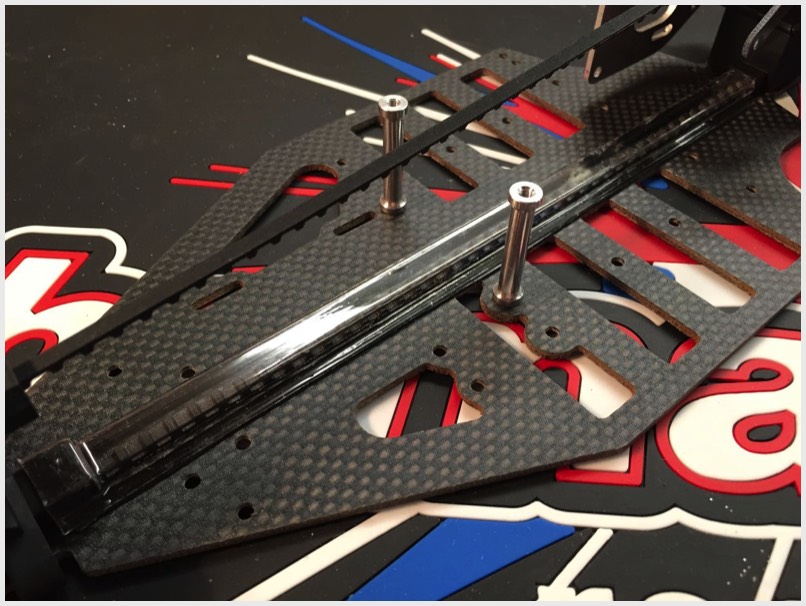

Lower belt cover

Stacks Image 458


The ugly: 20+ year old dust seals for the rear gearbox... the sponge vanished quite a bit
icon_smile

Stacks Image 1343


Rear dust seal attached. Somehow
icon_smile And gaps filled with thread lock.

Stacks Image 1335


Rear A-arms attached

Stacks Image 1327


Steering posts, belt cover brace and rear chassis gate

Stacks Image 1319


Battery mount posts attached. Let's stick with saddle packs for now, sticks were seriously uncool back in the days
icon_smile

Stacks Image 1311


Front A-arms mounted

Stacks Image 1303


Front steering knuckles, hubs and universals attached

Stacks Image 1439

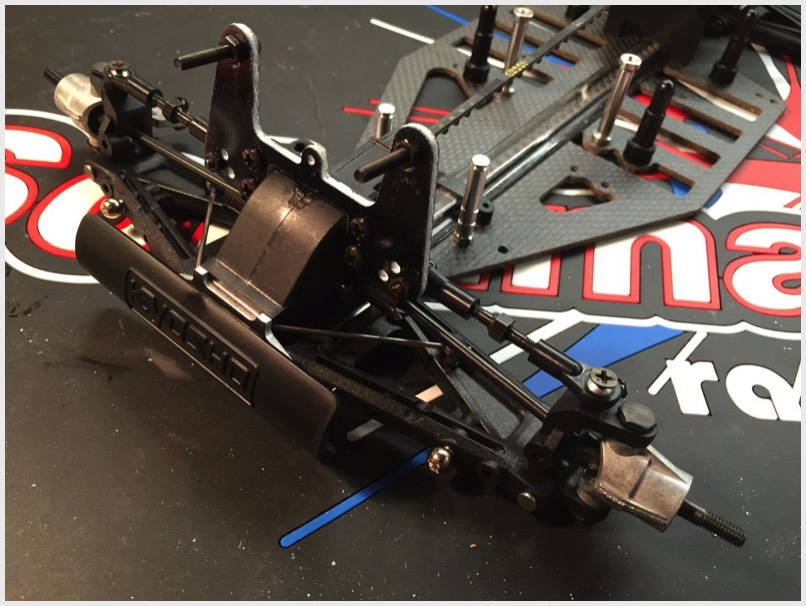

and completed with upper links

Stacks Image 1431


Rear hubs…

Stacks Image 1495

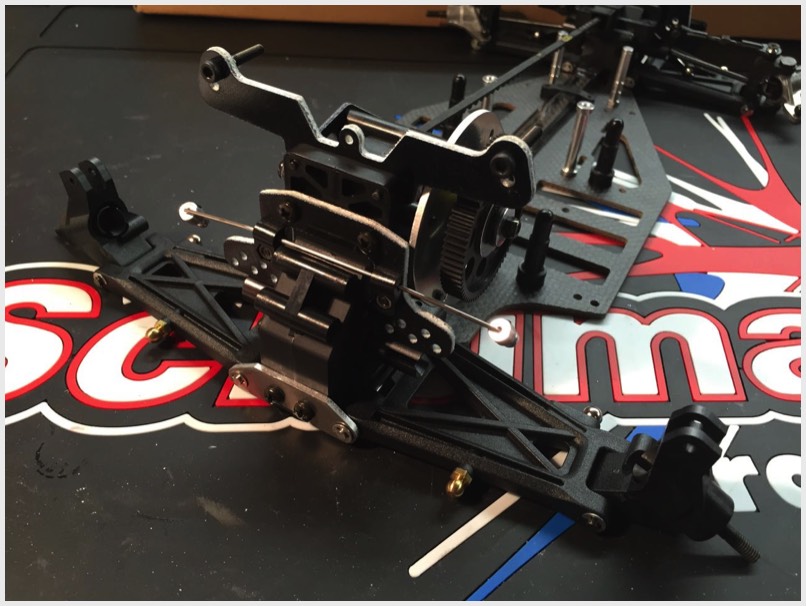

... completed with dogbanes and upper links.

Stacks Image 1503

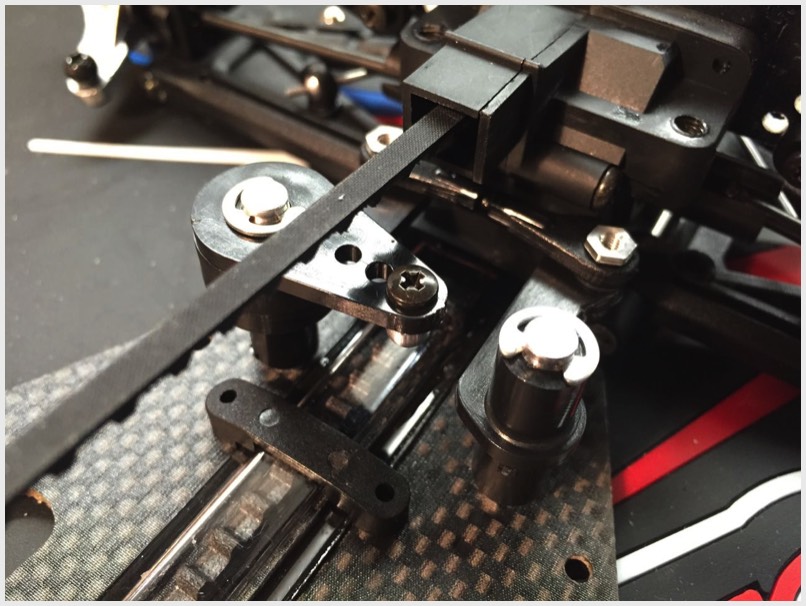

Next was the steering assembly:

Stacks Image 1515


Steering rods added.

Stacks Image 1525


Servo rod and mounts attached.

Stacks Image 1535


Upper deck back in position again.

Stacks Image 1721


Chassis so far:

Stacks Image 1729


Upper belt cover attached, went the thread lock route as suggested by the manual.

Stacks Image 1737


Gear cover is transparent for this version:

Stacks Image 1745

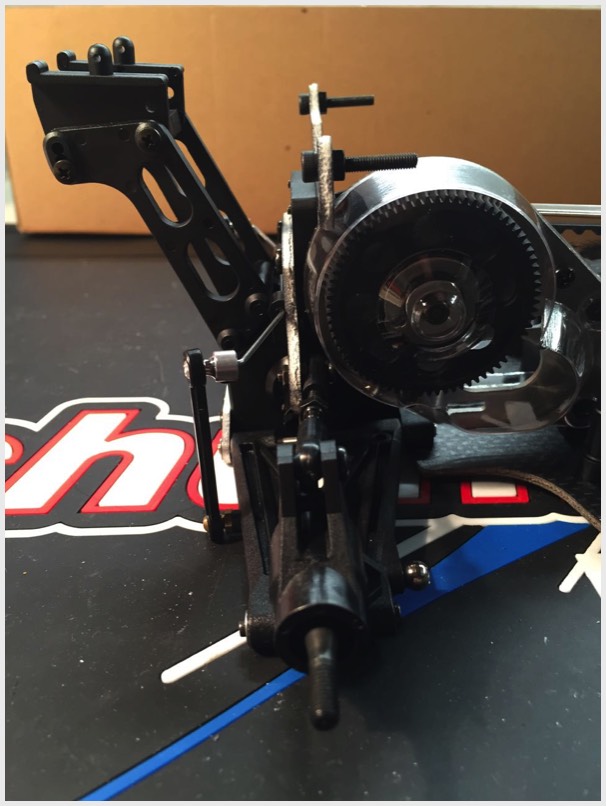

Wing mount was next:

Stacks Image 1753


Saddle pack straps and body/undertray mounts.

Stacks Image 1761

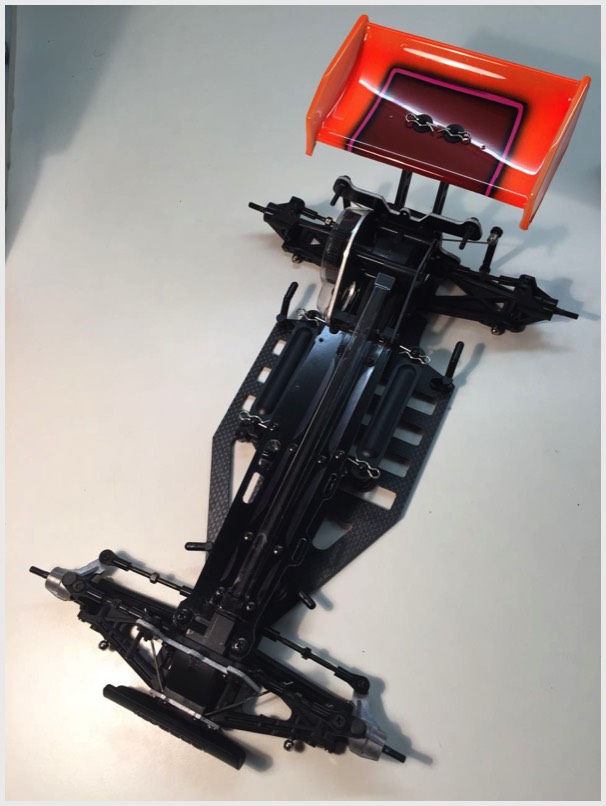

Chassis with wing.

Stacks Image 1781

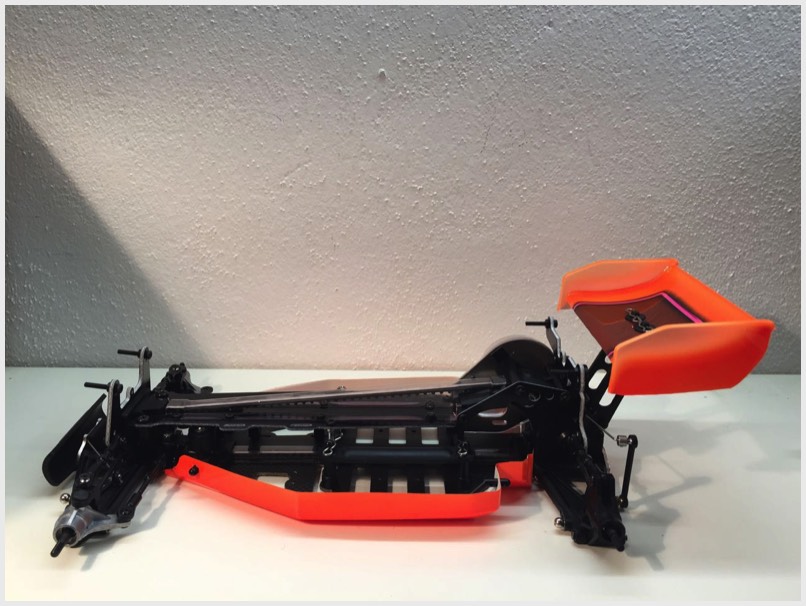

Undertray added:

Stacks Image 1789

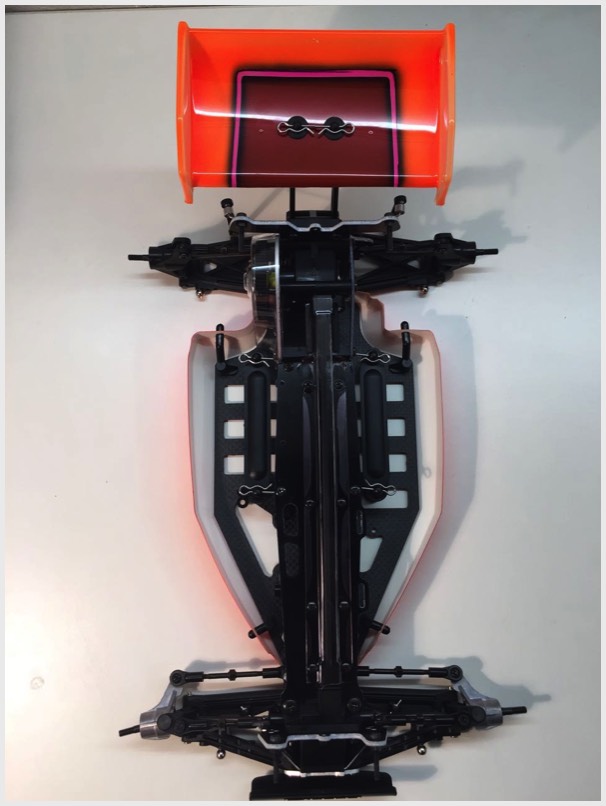

View from top:

Stacks Image 1797

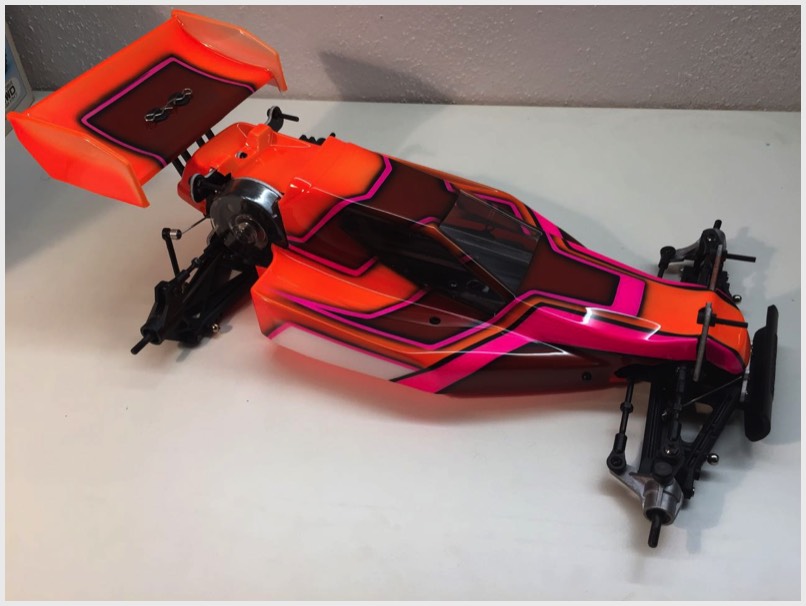

Body also fitted:

Stacks Image 1805


Wheels & Shocks built...

Stacks Image 1900
Stacks Image 1902
Stacks Image 1904
Stacks Image 1906


Shocks fitted

Stacks Image 1825


Model completed

Stacks Image 1833
Stacks Image 1841
Stacks Image 1849
Stacks Image 1857
Stacks Image 1877


A few decals added
